Black White Tunnel Single Span Greenhouse 150 Micron Film Covered No Welding

Sichuan Baolida Metal Pipe Fittings Manufacturing Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Black White Tunnel Single Span Greenhouse 150 Micron Film Covered No Welding

Brand Name : BLD

Model Number : CD2-1

Certification : ISO9001:2008

Place of Origin : Chengdu China

Price : USD3-6/sqm

Payment Terms : Western Union, T/T

Supply Ability : 50000000sqm per month

Delivery Time : 15 days

Packaging Details : The parts are packed in cartons, and the steel pipes are packed in conventional ways.

Produce time : Within 15days

Shipping method : By Sea

Technicsl : Aluminum plated zinc steel tube

MOQ : NO MOQ

Width : 8-10m a span

Top height : Standard 2.8m (accept customized)

Wall height : Standard 1.5m (accept customized)

Length : accept customized

Contact Now

Black And White Film Covered No Welding Single Span Tunnel Greenhouse

Description

This greenhouse is adapted from the most common tunnel greenhouse. The surface is covered with opaque black and white film to achieve a dull effect. It not only has the advantages of the ordinary tunnel greenhouse, but also has the advantages of the Blackout System, and it is cheaper to build. Easy to install and remove at the same time.



Structure introduce

The whole greenhouse adopts tunnel structure, and both sides need to be inserted into the ground 50 cm deep, which not only ensures the stability of the greenhouse but also reduces the production cost. Manual ventilation is also added on both sides of the greenhouse to effectively ensure air circulation. Insect-proof nets are added on both sides of ventilation, which can effectively prevent harmful organisms from entering.



Covering Material

Greenhouse special black and white film, white outside, black inside. It has the characteristics of avoiding light, almost impervious to light, anti-aging and so on. The white surface is reflective and thus acts as a cooling effect. The black side is completely dark and acts as an insulator in winter to prevent heat leakage.



Parameter

No Items Description Including Or Not
1 Steel Structure Hot-galvanized steel pipe Yes
2 Greenhouse film There's a lot of thickness to choose from Yes
3 Insect net High-quality polyethylene as raw material Yes
4 Cooling system It consists of cooling fans and a cooling pad Yes
5 Film-rolling system Electrodynamic type,chain type,manual type Yes
6 Ventilation system Side windows and circulation fans Yes
7 Heating system Hot water heating, hot air heating, electric heating Optional
8 Drip irrigation system It can be customized according to the greenhouse length and width Optional
9 Micro-sprinkler system It can be customized according to the greenhouse length and width Optional
10 Fill in light Easy assemble auto light deprivation blackout greenhouse Optional
11 Seedling bed Movable seeding bed Optional
12 Hydroponics It can be reused, no need to add nutrients, convenient and affordable. Optional

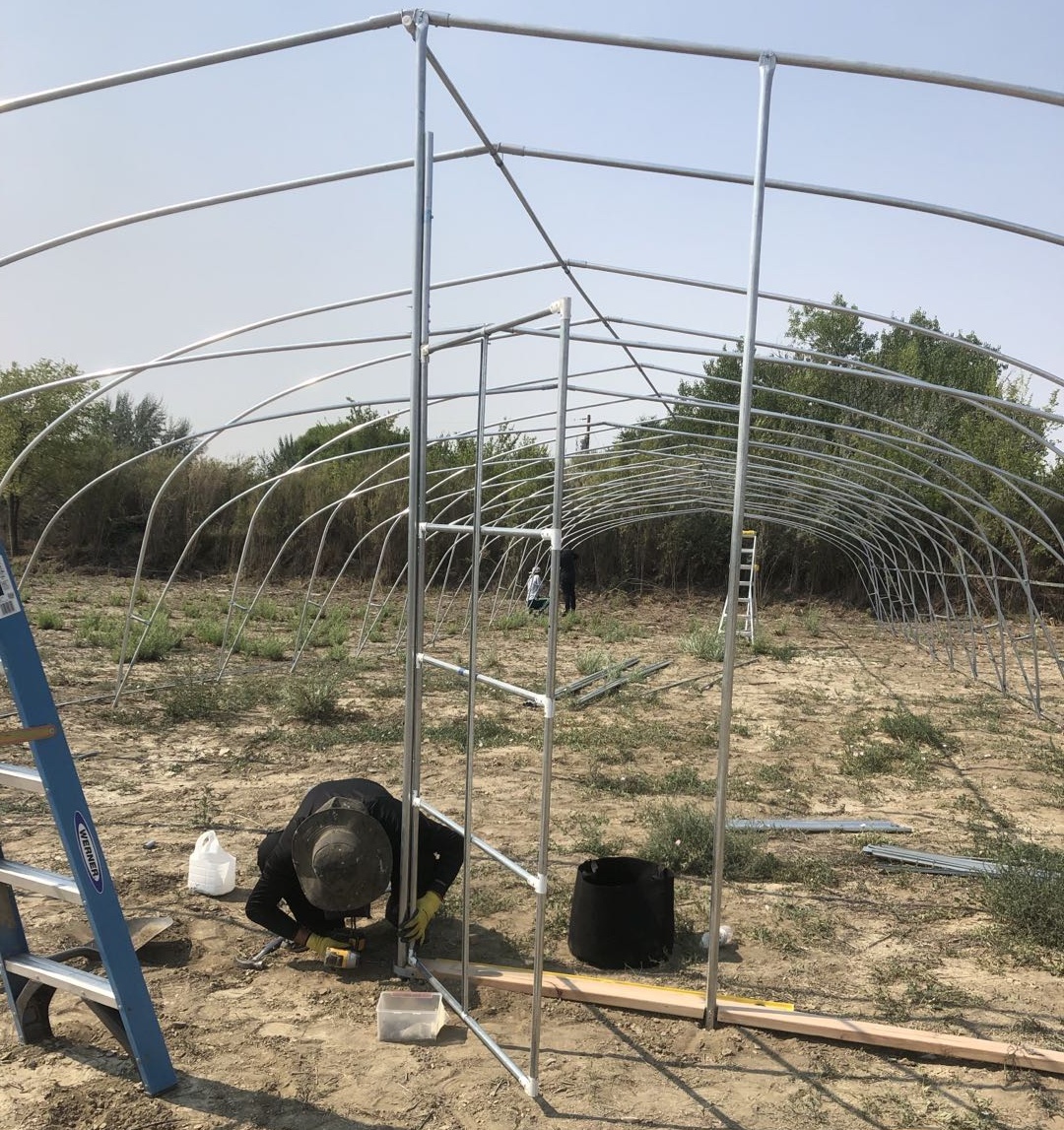

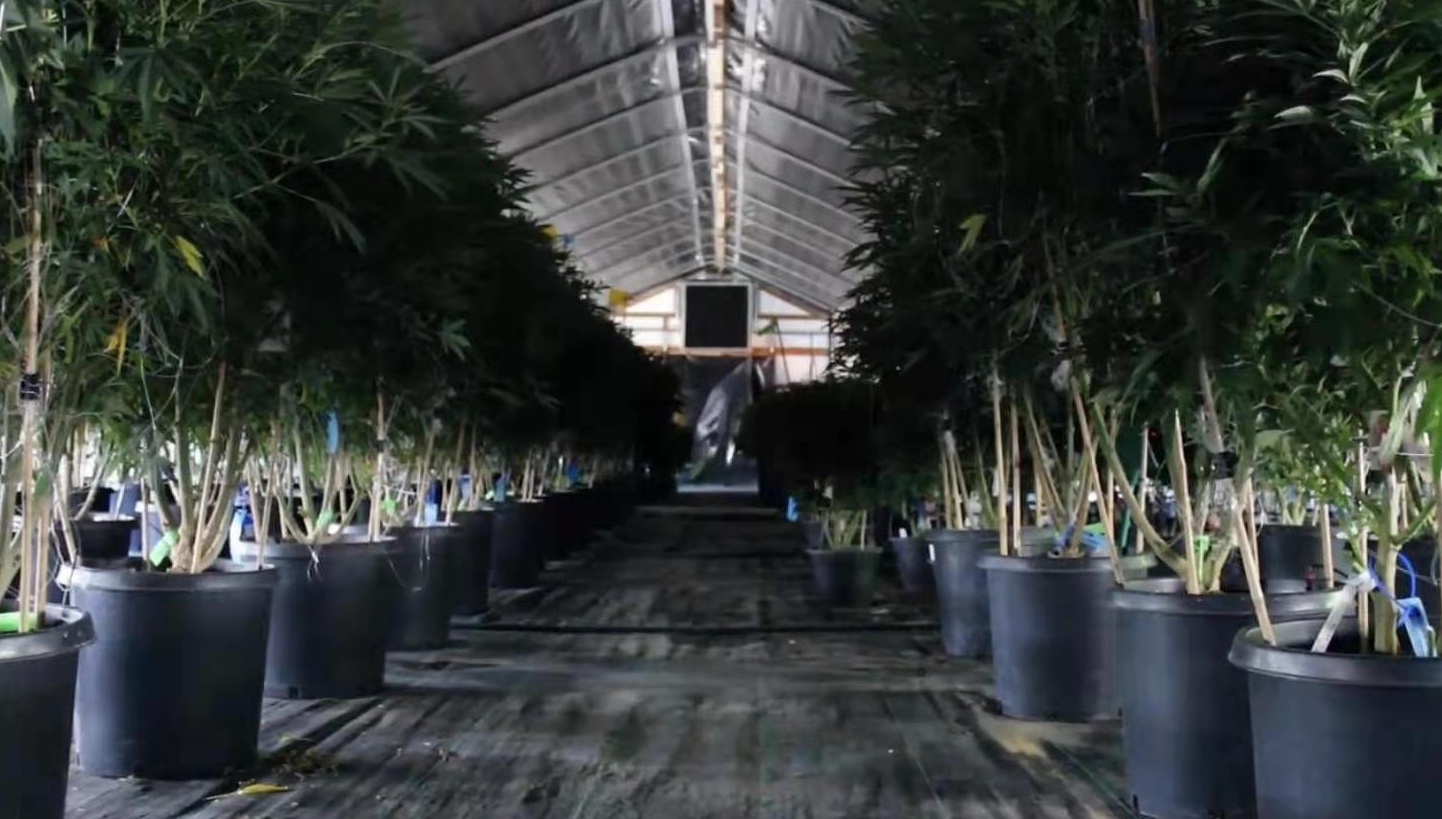

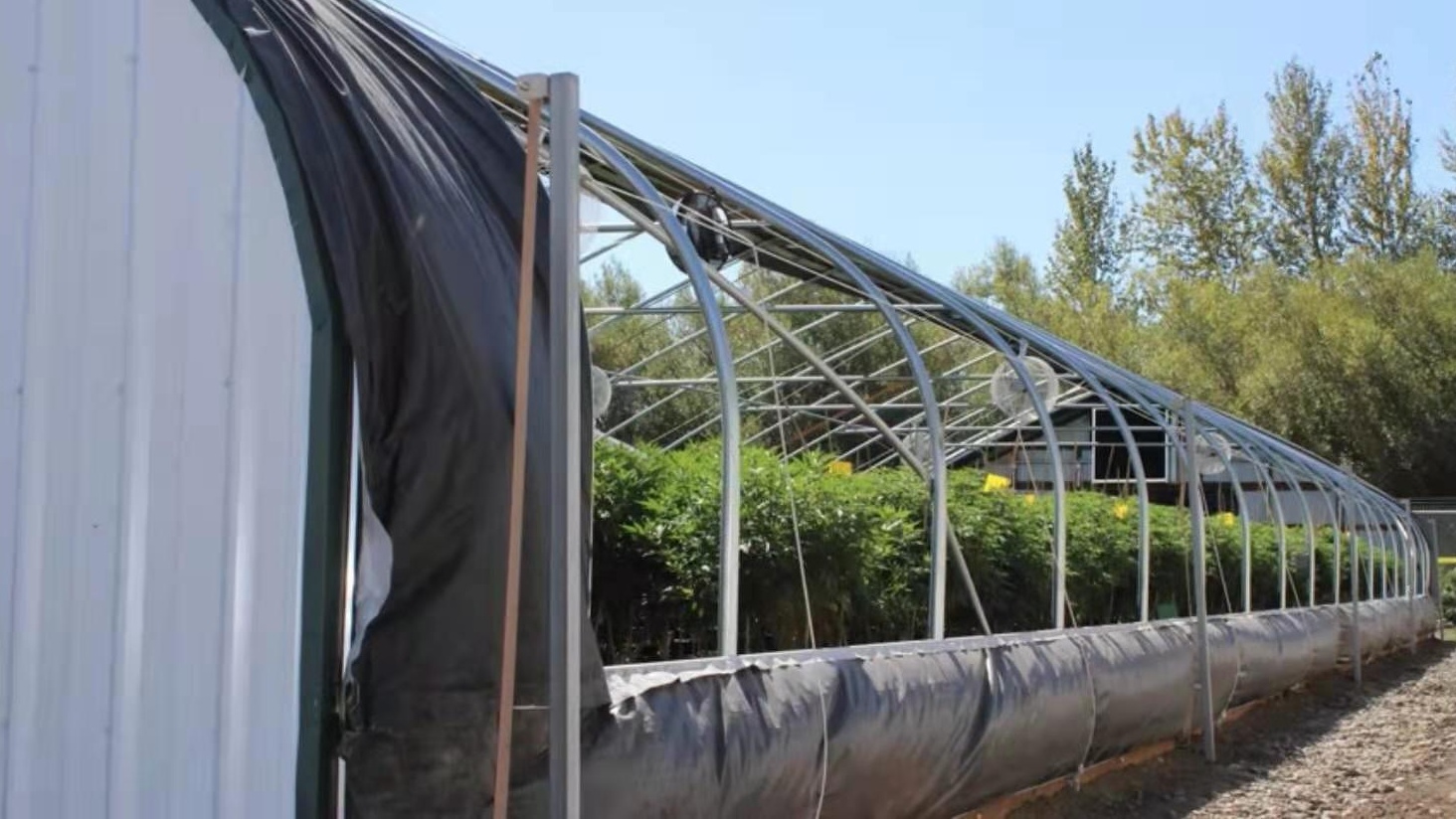

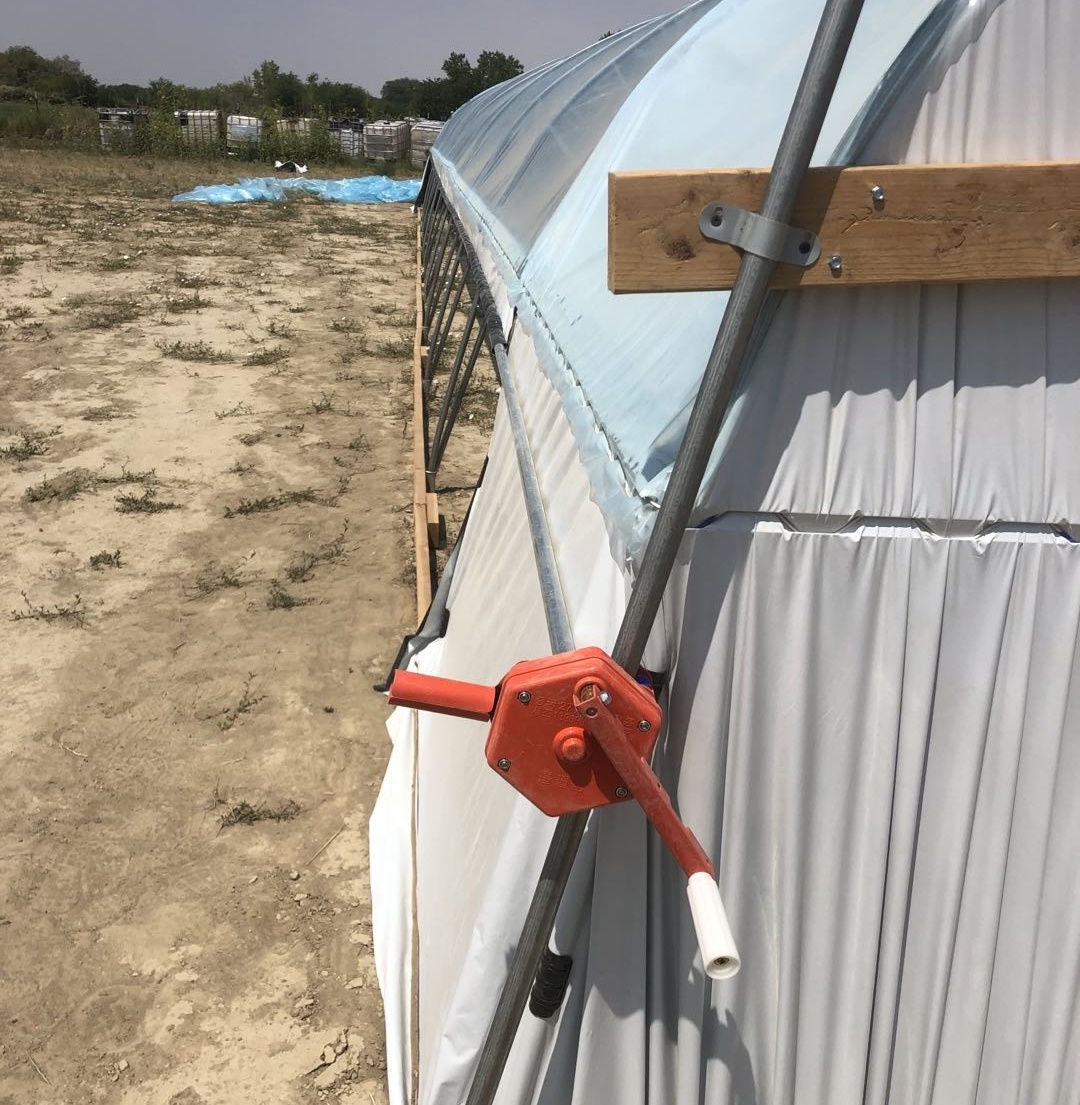

Examples of pictures

Black White Tunnel Single Span Greenhouse 150 Micron Film Covered No Welding

Black White Tunnel Single Span Greenhouse 150 Micron Film Covered No Welding

Black White Tunnel Single Span Greenhouse 150 Micron Film Covered No Welding

Black White Tunnel Single Span Greenhouse 150 Micron Film Covered No Welding

Black White Tunnel Single Span Greenhouse 150 Micron Film Covered No WeldingBlack White Tunnel Single Span Greenhouse 150 Micron Film Covered No Welding

Black White Tunnel Single Span Greenhouse 150 Micron Film Covered No WeldingBlack White Tunnel Single Span Greenhouse 150 Micron Film Covered No Welding

Black White Tunnel Single Span Greenhouse 150 Micron Film Covered No WeldingBlack White Tunnel Single Span Greenhouse 150 Micron Film Covered No Welding

Black White Tunnel Single Span Greenhouse 150 Micron Film Covered No Welding
Service
1. We can design the most suitable greenhouse for you according to your local climate and your needs.
2. We will give you a detailed quotation so that you can clearly see the composition of the price.
3. We provide a 5-year warranty service for steel pipes and a 3-year warranty service for covering materials.
4. we have a professional construction design team, that can give you the production of detailed construction drawings, at the same time to give you remote technical guidance.
5. We also cooperate with many agricultural factories to help you with one-stop shopping.
